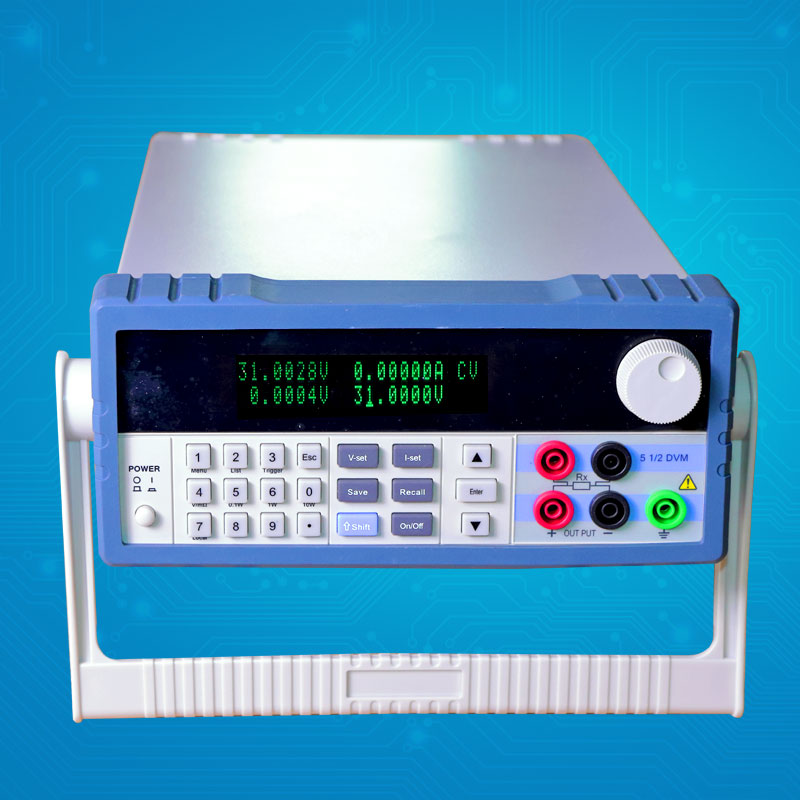

直流电源可编程电源_可编程电源_产品中心

• 低纹波和低噪音

• 超高分辨率及精度0.1mV/0.01mA

• 内置高精度五位半电压表和毫欧姆表

• 支持高精度和动态编程输出

• 高亮度、真空VFD显示屏,双排四路同时显示

• 根据温度变化，无极伺服，智能风扇系统

• 支持远端电压补偿，多数据存储

• 支持外部触发输入、输出

• 开机自检，软件校正，标准仪器架设计

• 支持GPIB/RS232/RS485/USB通讯

Model 型号	SGC	30V-5A	75V-2A	150V-1A
Input Rating 额定输出	Voltage	0-30V	0-75V	0-150V
Input Rating 额定输出	Current	0-5A	0-2A	0-1A
Load Regulation 负载调节率	Voltage	<0.01%+0.5mV	<0.01%+0.5mV	<0.01%+0.5mV
Load Regulation 负载调节率	Current	<0.01%+0.1mA	<0.01%+0.1mA	<0.01%+0.1mA
Setting Value Resolution 设定值分辨率	Voltage	0.5mV	1mV	2mV
Setting Value Resolution 设定值分辨率	Current	0.1mA	0.05mA	0.01mA
Readback Value Resolution 回读值分辨率	Voltage	0.1mV	0.1mV	1mV
Readback Value Resolution 回读值分辨率	Current	0.01mA	0.01mA	0.01mA
Setting Value Accuracy 设定值精度	Voltage	0.01%+2mV	0.01%+5mV	0.01%+15mV
Setting Value Accuracy 设定值精度	Current	0.05%+1mA	0.05%+0.5mA	0.05%+0.1mA
Readback Value Accuracy 回读值精度	Voltage	0.02%+5mV	0.02%+12mV	0.02%+25mV
Readback Value Accuracy 回读值精度	Current	0.1%+5mA	0.05%+2mA	0.05%+1mA
Ripple 纹波	Voltage	3mvp-p	5mvp-p	10mvp-p
Ripple 纹波	Current	2mA rms	1mA rms	0.5mA rms
Voltmeter Accuracy 电压表精度		0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV
Milliohmmeter Accuracy 毫欧姆表精度		10W. 0-1000Ω Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ
Working Condition 工作环境		0-40℃; 0-90% RH
Power Required 使用电源		AC 110V/220V±10%; 50/60 Hz
Weight 重量		6.5Kg
Dimension 机架安装尺寸		214mmW x 108mmH x 365mmD

11

Model 型号	SGC	6V - 60A	30V - 20A	75V - 8A
Input Rating 额定输出	Voltage	0 - 6V	0 - 30V	0 - 75V
Input Rating 额定输出	Current	0 - 60A	0 - 20A	0 - 8A
Load Regulation 负载调节率	Voltage	<0.01% + 1mV	<0.01% + 1mV	<0.01% + 1mV
Load Regulation 负载调节率	Current	<0.01% + 0.1mA	<0.01% + 0.1mA	<0.01% + 0.1mA
Setting Value Resolution 设定值分辨率	Voltage	0.1mV	0.5mV	1mV
Setting Value Resolution 设定值分辨率	Current	1mA	0.5mA	0.2mA
Readback Value Resolution 回读值分辨率	Voltage	0.1mV	0.1mV	0.1mV
Readback Value Resolution 回读值分辨率	Current	0.1mA	0.1mA	0.1mA
Setting Value Accuracy 设定值精度	Voltage	0.01% + 1mV	0.01% + 5mV	0.01% + 10mV
Setting Value Accuracy 设定值精度	Current	0.05% + 6mA	0.05% + 2mA	0.05% + 1mA
Readback Value Accuracy 回读值精度	Voltage	0.02% + 2mV	0.02% + 5mV	0.02% + 12mV
Readback Value Accuracy 回读值精度	Current	0.05% + 30mA	0.05% + 15mA	0.05% + 8mA
Ripple 纹波	Voltage	3mvp - p	5mvp - p	7mvp - p
Ripple 纹波	Current	15mA rms	7mA rms	4mA rms
Voltmeter Accuracy 电压表精度		0 - 12V Accuracy: 0.02% + 2mV 0 - 50V Accuracy: 0.02% + 5mV
Milliohmmeter Accuracy 毫欧姆表精度		10W. 0 - 1000mΩ Accuracy: 0.2% + 3 mΩ; 1000 - 10000 mΩ Accuracy: 0.2% + 6 mΩ
Working Condition 工作环境		0 - 40℃; 0 - 90% RH
Power Required 使用电源		AC 110V/220V±10%; 50/60 Hz
Weight 重量		28Kg
Dimension 机架安装尺寸		428mmW×103.5mmH×453.5mmD

22 <

Model 型号	SGC	30V - 1A	75V - 2A	150V - 1A
Input Rating 额定输出	Voltage	0 - 30V	0 - 75V	0 - 150V
Input Rating 额定输出	Current	0 - 1A	0 - 2A	0 - 1A
Load Regulation 负载调节率	Voltage	<0.01% + 0.5mV	<0.01% + 0.5mV	<0.01% + 0.5mV
Load Regulation 负载调节率	Current	<0.01% + 0.1mA	<0.01% + 0.1mA	<0.01% + 0.1mA
Setting Value Resolution 设定值分辨率	Voltage	0.5mV	1mV	2mV
Setting Value Resolution 设定值分辨率	Current	0.1mA	0.05mA	0.01mA
Readback Value Resolution 回读值分辨率	Voltage	0.1mV	0.1mV	1mV
Readback Value Resolution 回读值分辨率	Current	0.001mA	0.01mA	0.01mA
Setting Value Accuracy 设定值精度	Voltage	0.01% + 2mV	0.01% + 5mV	0.01% + 15mV
Setting Value Accuracy 设定值精度	Current	0.05% + 1mA	0.05% + 0.5mA	0.05% + 0.1mA
Readback Value Accuracy 回读值精度	Voltage	0.02% + 5mV	0.02% + 12mV	0.02% + 25mV
Readback Value Accuracy 回读值精度	Current	0.1% + 1mA	0.05% + 2mA	0.05% + 1mA
Ripple 纹波	Voltage	8mvp - p	5mvp - p	10mvp - p
Ripple 纹波	Current	1mA rms	1mA rms	0.5mA rms
Voltmeter Accuracy 电压表精度		0 - 12V Accuracy: 0.02% + 2mV; 0 - 50V Accuracy: 0.02% + 5mV
Milliohmmeter Accuracy 毫欧姆表精度		10W. 0 - 1000mΩ Accuracy: 0.2% + 3 mΩ; 1000 - 10000 mΩ Accuracy: 0.2% + 6 mΩ
Working Condition 工作环境		0 - 40℃; 0 - 90% RH
Power Required 使用电源		AC 110V/220V±10%; 50/60 Hz
Weight 重量		6.5Kg
Dimension 机架安装尺寸		214mmW x 108mmH x 365mmD

33 <

Model 型号	SGC	30V - 1A	75V - 2A	150V - 1A
Input Rating 额定输出	Voltage	0 - 30V	0 - 75V	0 - 150V
Input Rating 额定输出	Current	0 - 1A	0 - 2A	0 - 1A
Load Regulation 负载调节率	Voltage	<0.01% + 0.5mV	<0.01% + 0.5mV	<0.01% + 0.5mV
Load Regulation 负载调节率	Current	<0.01% + 0.1mA	<0.01% + 0.1mA	<0.01% + 0.1mA
Setting Value Resolution 设定值分辨率	Voltage	0.5mV	1mV	2mV
Setting Value Resolution 设定值分辨率	Current	0.1mA	0.05mA	0.01mA
Readback Value Resolution 回读值分辨率	Voltage	0.1mV	0.1mV	1mV
Readback Value Resolution 回读值分辨率	Current	0.001mA	0.01mA	0.01mA
Setting Value Accuracy 设定值精度	Voltage	0.01% + 2mV	0.01% + 5mV	0.01% + 15mV
Setting Value Accuracy 设定值精度	Current	0.05% + 1mA	0.05% + 0.5mA	0.05% + 0.1mA
Readback Value Accuracy 回读值精度	Voltage	0.02% + 5mV	0.02% + 12mV	0.02% + 25mV
Readback Value Accuracy 回读值精度	Current	0.1% + 1mA	0.05% + 2mA	0.05% + 1mA
Ripple 纹波	Voltage	8mvp - p	5mvp - p	10mvp - p
Ripple 纹波	Current	1mA rms	1mA rms	0.5mA rms
Voltmeter Accuracy 电压表精度		0 - 12V Accuracy: 0.02% + 2mV; 0 - 50V Accuracy: 0.02% + 5mV
Milliohmmeter Accuracy 毫欧姆表精度		10W. 0 - 1000mΩ Accuracy: 0.2% + 3 mΩ; 1000 - 10000 mΩ Accuracy: 0.2% + 6 mΩ
Working Condition 工作环境		0 - 40℃; 0 - 90% RH
Power Required 使用电源		AC 110V/220V±10%; 50/60 Hz
Weight 重量		6.5Kg
Dimension 机架安装尺寸		214mmW x 108mmH x 365mmD

22

Model 型号	SGC	6V - 60A	30V - 20A	75V - 5A
Input Rating 额定输出	Voltage	0 - 6V	0 - 30V	0 - 75V
Input Rating 额定输出	Current	0 - 60A	0 - 20A	0 - 5A
Load Regulation 负载调节率	Voltage	<0.01% + 1mV	<0.01% + 1mV	<0.01% + 1mV
Load Regulation 负载调节率	Current	<0.01% + 0.1mA	<0.01% + 0.1mA	<0.01% + 0.1mA
Setting Value Resolution 设定值分辨率	Voltage	0.1mV	0.5mV	1mV
Setting Value Resolution 设定值分辨率	Current	1mA	0.5mA	0.2mA
Readback Value Resolution 回读值分辨率	Voltage	0.1mV	0.1mV	0.1mV
Readback Value Resolution 回读值分辨率	Current	0.1mA	0.1mA	0.1mA
Setting Value Accuracy 设定值精度	Voltage	0.01% + 1mV	0.01% + 5mV	0.01% + 10mV
Setting Value Accuracy 设定值精度	Current	0.05% + 6mA	0.05% + 2mA	0.05% + 1mA
Readback Value Accuracy 回读值精度	Voltage	0.02% + 2mV	0.02% + 5mV	0.02% + 12mV
Readback Value Accuracy 回读值精度	Current	0.05% + 30mA	0.05% + 15mA	0.05% + 8mA
Ripple 纹波	Voltage	3mvp - p	5mvp - p	7mvp - p
Ripple 纹波	Current	15mA rms	7mA rms	4mA rms
Voltmeter Accuracy 电压表精度		0 - 12V Accuracy: 0.02% + 2mV; 0 - 50V Accuracy: 0.02% + 5mV
Milliohmmeter Accuracy 毫欧姆表精度		10W. 0 - 1000mΩ Accuracy: 0.2% + 3 mΩ; 1000 - 10000 mΩ Accuracy: 0.2% + 6 mΩ
Working Condition 工作环境		0 - 40℃; 0 - 90% RH
Power Required 使用电源		AC 120V/230V±10%; 50/60 Hz
Weight 重量		28Kg
Dimension 机架安装尺寸		428mmW×103.5mmH×453.5mmD

手机研发，微电子实验室，研究所，小电流高精度应用
